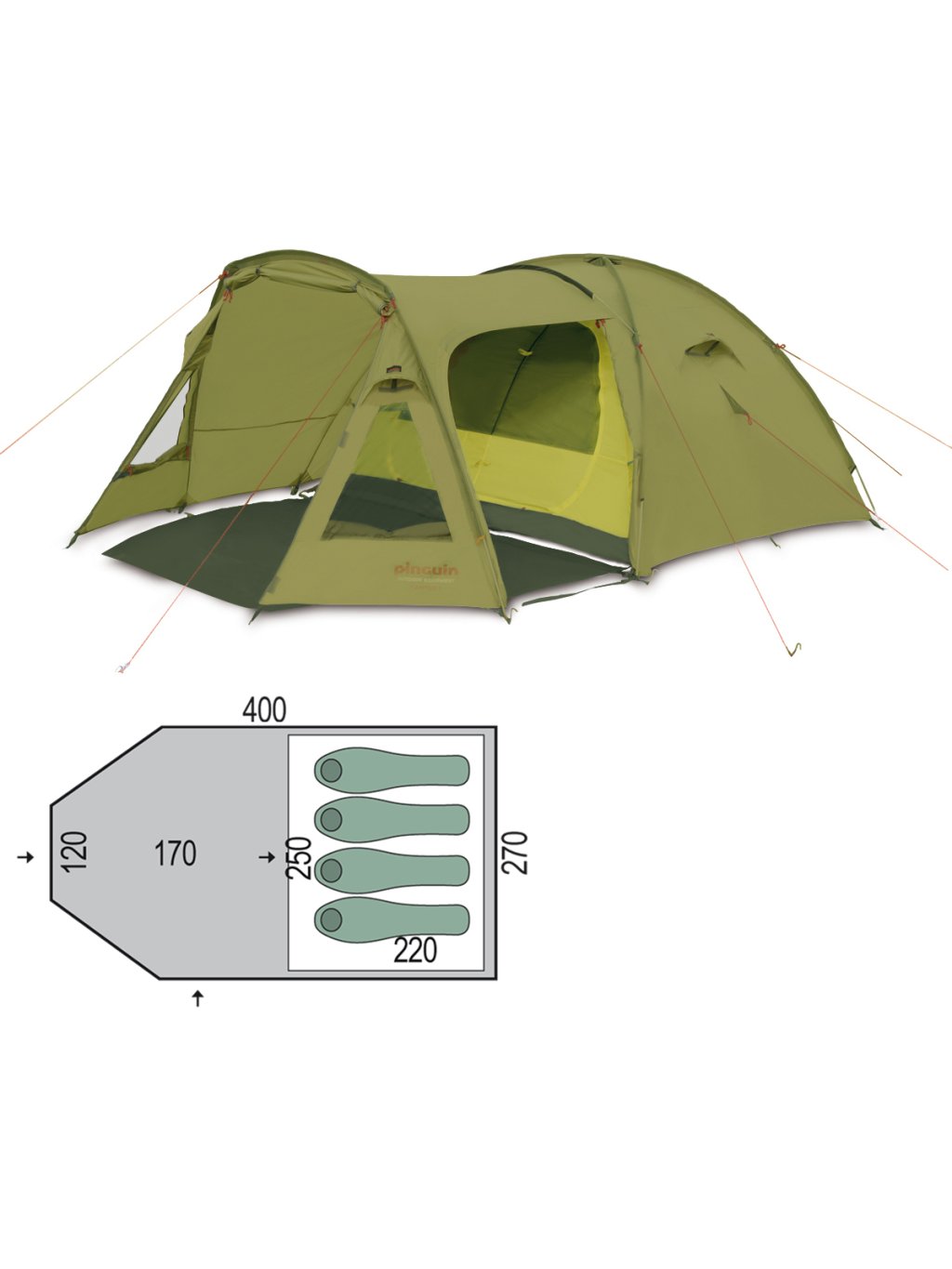

Campus 4 Duralu

The flysheet is made of Polyester with a polyurethane coating, giving a water column of 4,000 mm. Seams are fully taped to protect against leakage. The groundsheet is made of nylon with a polyurethane coating giving it a water column of 10,000 mm. The poles are made up of duralumin (7001) segments with a diameter of 9.5 mm (main poles) and 8 mm (brace above the entrance to the inner tent).

Description

The tent is double-skinned consisting of an inner tent and flysheet. The inner tent has a rectangular floor plan with one entrance on its longer side. The flysheet forms a large vestibule that can be entered through two different entrances.

Tent concept

This is based on the principle of a pole structure threaded through sleeves made of perforated material on outside of the flysheet. The flysheet and inner tent (which is suspended under the flysheet) are erected at the same time after threading the poles through the sleeves. The advantage of this method is that the inner tent can be detached from the flysheet and the flysheet can then be erected separately to create a single-skin tent without a groundsheet.

Ventilation

There is a vent at the top of the flysheet dome. Vent covers are designed so they are not affected by the wind. This prevents leaks during rain with strong winds.

Pitching the tent

Thread the poles through the perforated sleeves on the outside of the flysheet and insert the ends of the poles into the brass eyelets on the straps on the bottom edge of the flysheet. Then fasten the buckles on the straps near the ground inside the tent and the flysheet will stand. The inner tent is attached to the loops on the inside of the flysheet. Anchor the erected tent with pegs and guy ropes and tighten with the plastic buckles.
